Relationship between LAI vs. EVI

• This figure corresponds to figure S7 in the manuscript.
• An high-resolution version of this figure is available here.

library(tidyverse)

source("../scripts/aux.R")


stand <- read_csv("../data/stand_summary.csv") |>
  dplyr::select(-locality, -site_code, -elev_category) |>
  separate(sp_elev, into = c("sp_code", "elev_code"), remove = FALSE) |>
  mutate(elev_code = fct_recode(elev_code,
                                `low-Dec` = "low2",
                                "medium" = "med")) |>
  # mutate(elev_code = fct_recode(elev_code, "medium" = "med")) |>
  unite("sp_elev", c(sp_code, elev_code), remove = FALSE)

evi_landsat <- read_csv("../data/iv_landsat.csv") |>
  filter(iv == "evi") |>
  dplyr::select(year, sp_code, elev_code, sp_elev, evi = mean) |>
  mutate(variable = "evi_landsat")  |>
  mutate(species = paste0("P. ", sp_code))

d <- evi_landsat |>
  left_join(
    (stand |> dplyr::select(sp_elev, lai, dentreec, bac)), by = "sp_elev") |>
  mutate(elev_code = fct_relevel(elev_code, "low-Dec", "low", "medium", "high")) |>
  mutate(sp_code = fct_relevel(sp_code, "halepensis","pinaster", "nigra", "sylvestris")) |>
  mutate(species = fct_relevel(species, "P. halepensis","P. pinaster", "P. nigra", "P. sylvestris"))

summary_evi <- evi_landsat |>
  group_by(sp_elev, elev_code, species, sp_code) |>
  summarise(
    evi_avg = mean(evi),
    evi_avg_sd = sd(evi),
    evi_avg_se = sqrt(evi_avg_sd/length(evi))) |>
  left_join(
    (stand |> dplyr::select(sp_elev, lai, dentreec, bac)), by = "sp_elev")


p <- ggplot(summary_evi,
            aes(x = lai, y = evi_avg)) +
  geom_point(data = d,
             aes(y = evi, x = lai, fill = species, color = species),
             size = .5,
             alpha = 0.7) +
  geom_point(aes(shape = elev_code,
                 fill = species, color = species, size = bac),
             alpha = 0.7,
             stroke = 1) +
  scale_shape_manual(
    values = shape_elev,
    name = "Elevation") +
  scale_colour_manual(
    values = colours_Specie,
    labels = expression(italic("P. halepensis"), italic("P. pinaster"), italic("P. nigra"), italic("P. sylvestris")),
    name = "Species") +
  scale_fill_manual(
    values = colours_Specie,
    labels = expression(italic("P. halepensis"), italic("P. pinaster"), italic("P. nigra"), italic("P. sylvestris")),
    name = "Species") +
  scale_size_continuous(name = expression(BA~(m^2~ha^{-1}))) +
  #scale_size_continuous(name = "Tree Density\n(ind/ha)") +
  theme_bw() +
  ylab(expression(EVI[Landsat])) +
  xlab(expression(LAI~(m^2~m^{-2}))) +
  theme(
    panel.grid = element_blank()
  ) +
  scale_y_continuous(limits = c(0,0.5)) +
  scale_x_continuous(limits = c(1, 4))


p_evi_lai <- p + theme(
  panel.grid = element_blank(),
  legend.text = element_text(size =  7),
  legend.title = element_text(size =  8),
  legend.box = "horizontal",
  legend.position = c(0.98, 0.02),
  legend.justification = c(1, 0),
  legend.background = element_rect(fill = alpha("white", 0.8), colour = NA),
  axis.title = element_text(size = 14, face = "bold")
) +
  guides(
    colour = guide_legend(order = 1),
    fill = guide_legend(order = 1),
    shape = guide_legend(order = 2,
                         override.aes = list(stroke = .5, size = 3, colour = "black")),
    size = guide_legend(order = 3))

nls_model_evi_lai <- nls(evi_avg ~ a + b * log(lai), data = summary_evi,
                         start = list(a = 0.2, b = 0.1))

observed <- summary_evi$evi_avg
# Sum of Squared Residuals (SSR)
SSR <- sum((observed - predict(nls_model_evi_lai))^2)
# Total Sum of Squares (TSS)
TSS <- sum((observed - mean(observed))^2)
# R-squared
r2_evi_lai <- 1 - (SSR / TSS)


p_evi_lai <- p_evi_lai + geom_smooth(data = summary_evi,
                                     method = "nls",
                                     formula = y ~ a + b * log(x),
                                     method.args = list(start = list(a = 0.2, b = 0.1)),
                                     se = FALSE, colour = "black", linetype = "dashed") +
  annotate("text", x = 1.4, y = 0.5, label= sprintf("R^2 == %.3g", round(r2_evi_lai, 2)),
           color="black",
           parse = TRUE,
           size = 6)

p_evi_lai

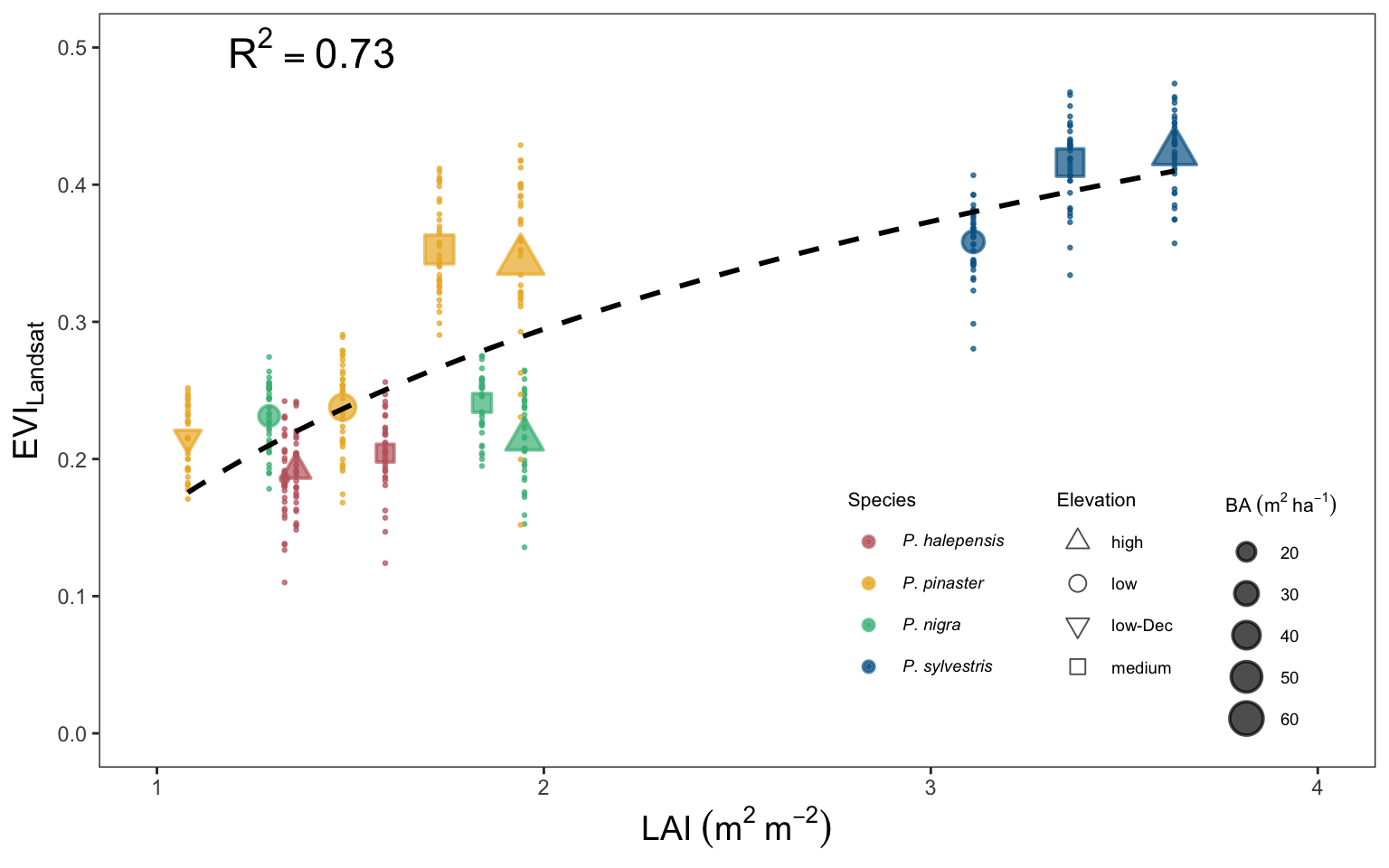

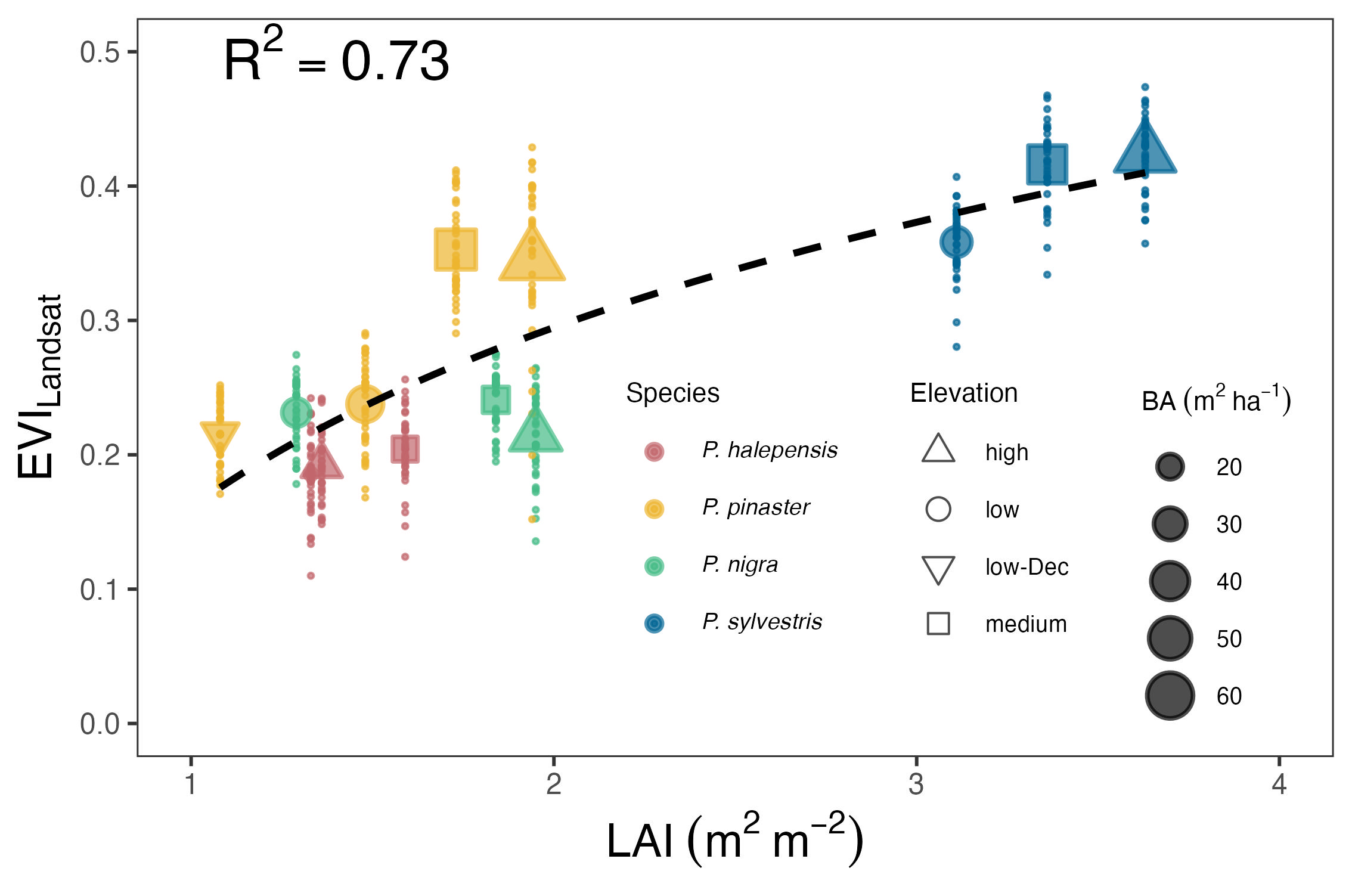

Relationship between Leaf Area Index (LAI, \(m^{2} \cdot m^{-2}\)) and the Enhanced Vegetation Index (\(EVI_{Landsat}\)) across the studied sites. Small dots represent annual EVI values while larger dots represent average value of EVI in each study site. The size of big dots is proportional to the basal area of the study sites (\(m^2 \cdot ha^{-1}\)).
