Download and process the dataset from GBIF

Author

Antonio J. Pérez-Luque ORCID logo

Introduction

This document outlines the process of downloading, processing, and analyzing data from the GBIF dataset Monitoring data on the effect of domestic livestock and rabbits on Androcymbium europaeum pastures. The dataset contains information about the annual monitoring of the effect of herbivorism on the conservation status of endangered species Androcymbium europaeum. It has been generated from the SERPAM Department (Evaluation, Restoration and Protection of Mediterranean Agrosystems Service) of the Zaidín Experimental Station belonging to Spanish National Research Council (CSIC-EEZ).

Dataset features

The dataset Monitoring data on the effect of domestic livestock and rabbits on Androcymbium europaeum pastures (Pérez-Luque et al., 2023) is deposited in GBIF. It can be access at doi:10.15470/jpjhuu and here.

Since 2010, the SERPAM Department has been carrying out annual sampling to evaluate the effect of domestic and wild livestock (e.g. rabbits) on the pastures inhabited by Androcymbium europaeum.

A randomized block design was followed, and consisted of 6 blocks separated between 300 and 400 m, with three different treatments or management types (one plot of 2.5 x 2.5 m by treatment and block) (Figure 1):

  • G+R+: herbivory by sheep and rabbits
  • G-R+: excluding only sheep (fenced with hunting netting)
  • G-R-: excluding rabbits and sheep (fenced with rhomboidal netting of 4 cm of light)

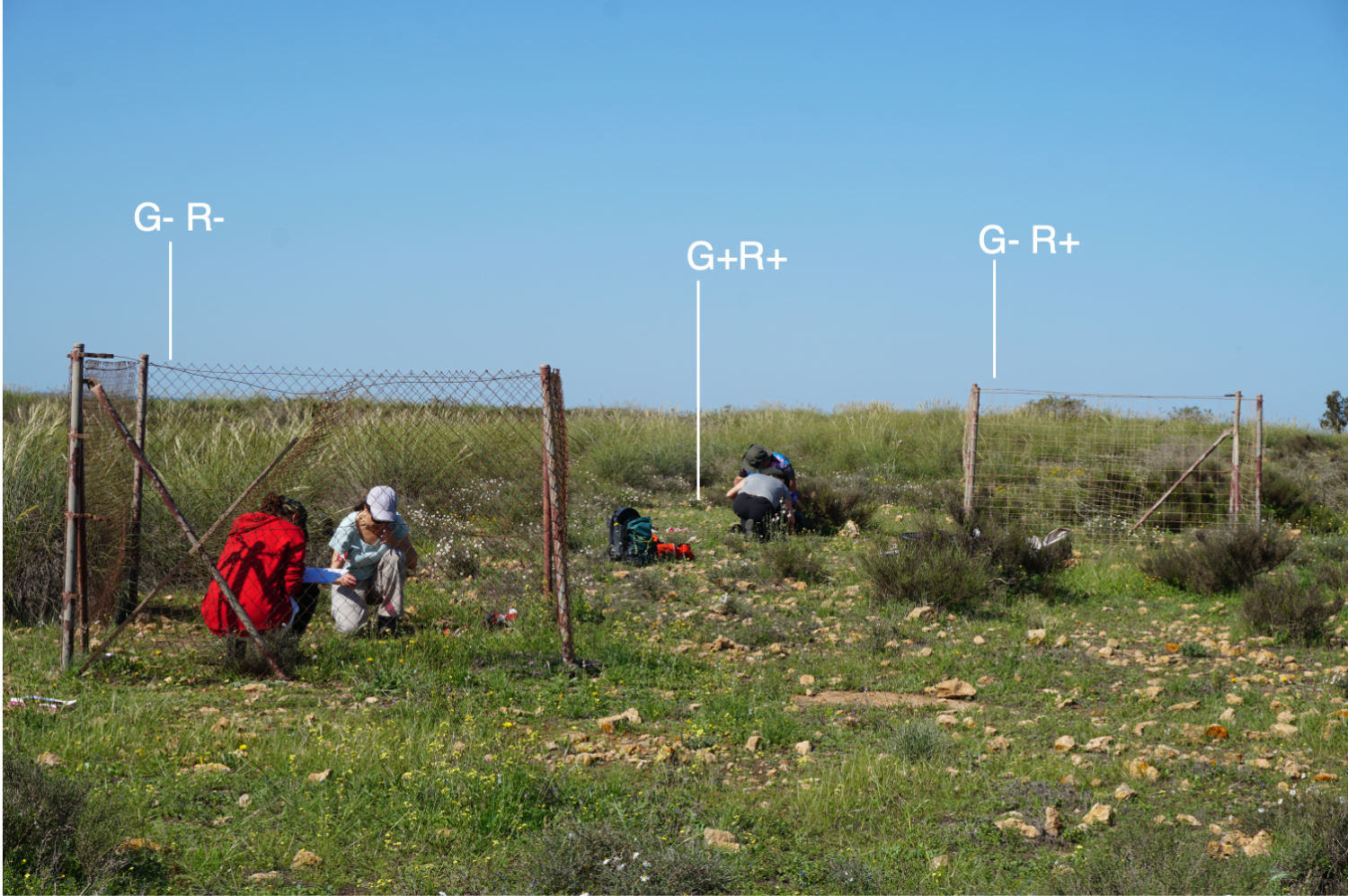

Figure 1: Treatments.

Abundance of Androcymbium europaeum

The density of A. europaeum in each plot was yearly evaluated by counting the number of individuals in 50 cm x 50 cm fixed squares, taking four squares per plot, distributed according to the four cardinal points (N, S, E and W): 24 squares per treatment (six blocks by four squares)(Figure 2). The exclusion plots were installed in May 2010, after the first density and biodiversity samplings (March and April), thus this year should be considered as year zero, without exclusion treatments.

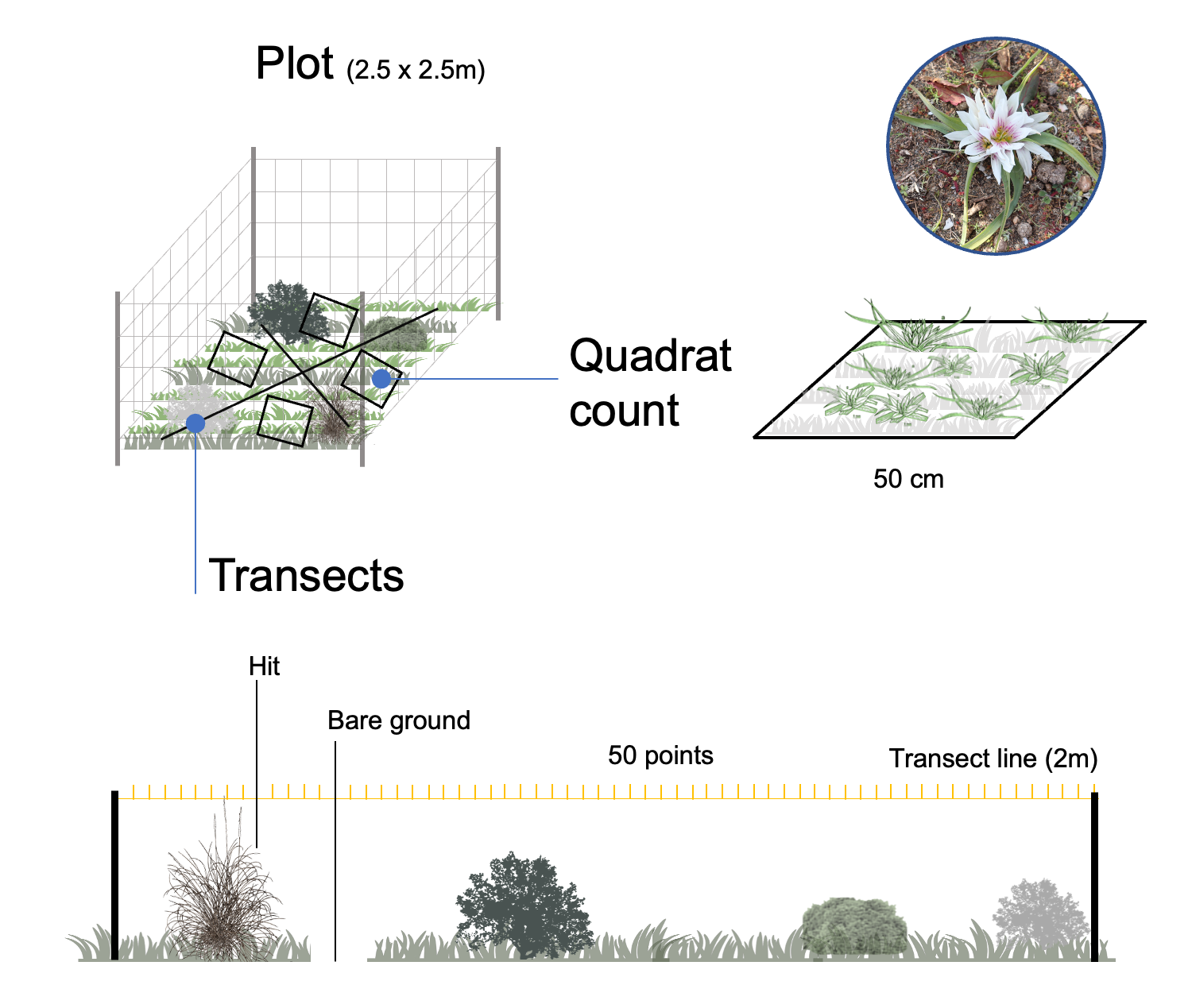

Figure 2: Sampling plots. In each plot (2.5 x 2.5m), there were set 4 quadrat count (50x50 cm) and 2 transect lines (2m).

Assesment of plant communities

The evaluation of plant communities where A. europaeum lives was conducted annually during the spring season to ensure that most annual species had grown and flowered, allowing for accurate identification. In each plot, the point-intercept (non-destructive) method was applied, following a modification proposed by Daget & Poissonet (1971) of the point-quadrat method originally described by Levy & Madden (1933). Two fixed crossed transects measuring 2 meters in length were established (Figure 2), with 50 points surveyed per transect. These points were spaced 4 cm apart, and the plant species in contact with a 2 mm needle were recorded. For each transect the following variables were determined:

  • Coverages:

    • specific plant cover: percentage of soil covered by each plant species
    • vegetation cover: percentage of soil covered by vegetation
    • total specific plant cover: sum of the specific vegetation cover of each species
    • musk/lichen cover: percentage of soil covered by musk or lichen
    • bare soil cover: percentage of bare soil

  • Floristic composition:

    • plant species richness: number of species
    • Shannon diversity index (H’): \(\text{H'} = -\sum p_i \cdot \ln(p_i)\) where \(p_i\) is the proportion of individuals of one particular species found divided by the total number of individuals found.

GBIF Dataset Structure

Before diving into data processing, it’s important to understand the structure of the dataset. Our dataset was accomodated to the Darwin Core Archive (DwC-A) using the sampling-event data type (GBIF, 2018), following the structure of files of the Figure 3.

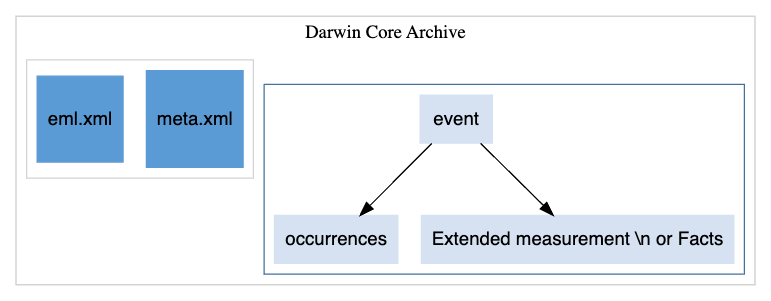

Figure 3: Structure of Darwin Core Archive.

In the Figure 4 we shown the structure of the visits within our experimental design and the different events that could be generated.

Figure 4: Schema of the experimental design and its accomodation to sampling event data type.

Abundance data

First we have created 18 events with the spatial characteristics of the plots. Each of this event has an unique id (eventID field in the table event). For the abundance data of A. europaeum, in each plot, we have 4 quadrats, which are visited annually. For each of these quadrats, events with their spatial characteristics were created. These events are related to the parent events (plots) by means of the parentEventID field in the event table. The name of each quadrats is a combination of the parent’s plot name plus the replicate’s name. For instance the A10_QS name of a quadrats correspond to the plot A10 and the south quadrat (QS stands for replicate south). The four quadrats of each plot are named: QN: northern, QS: southern, QW: western and QE eastern one.

Then, each quadrat is visited annually and it generates an event with the following eventID: A00_QX_00001122, where:

  • A00 is the name of the plot (e.g. A10)
  • QX is the name of the quadrat (e.g. RS)
  • 00001122 is the date of the visit as year, month and day (e.g. 20200204)

Each quadrat data visit event is related to a quadrat event by means of the parentEventID field in the event table.

For each quadrat data visit event we have two related data type:

  • measurement: in each visit we recorded the total count (abundance) of the quadrat for the taxa A. europaeum. So, in the extendedMeasurementOrFacts table there are a measurmentID field with the following structure: A00_QX_00001122 A00. For instance, the measurementID A10_QE_20100323 A01 corresponds to the mesurement type A01 (abundance) of the event A10_QE_20100323.

  • occurrences: in each visit we recorded data of the taxa Androcymbium europaeum that is stored as an entry in the occurrence table. The field occurenceID in this table has the structure: A10_QE_20100323_01, that correspond to the occurence 01 of the eventID A10_QE_20100323. The occurrence table has also the eventID field that is related to the event table.

Assesment of plant communities

We have also the same 18 event plots that created in the previous section. For each plot, we sampled two linear transects called T1 and T2. For each transect a spatial event was created following similar approach as the abundance data. So, an event called A10_T1 corresponds to the transect T1 of the plot A10. Each transect were visited annually and we created an event for each visit combined the transect event and the date. For instance, the event A11_T1_20210420 corresponds to a visit performed on April-20 of 2021 (20210420) in the transect T1 of the plot A11.

For each transect visit we have several types of data.

  • Occurrence data. We recorded the presence of A. europaeum or Filago pyramidata. Those occurrence records were stored at occurrence table. For instance, a record with this occurenceID: A10_T1_20210420_02 correspond to the taxa 02 of the A10_T1_20210420 event, i.e. the transect T1 visited on April-20 of 2021.

  • Specific measurements. For each taxa, we also have different measurement in each transect. For instance, for the taxa Stipa capensis we recorded a specific plant cover in a transect in a visit. Those measurements are stored in the extendedMeasurementOrFacts table with a measurmentID. So, the measurementID A21_T1_20210420_05_V09 corresponds to the measurement V09 of the taxa 05 obtained in the transect T1 of the plot A21 on April-20 of 2021 (20210420).

  • Transects measurements. We computed also some measurements at transect-level, such us, the diversity, plant species richness, total cover, among others. Those variables are also stored in the extendedMeasurementOrFacts table. Therefore, a record with the measurmentID A10_T1_20230411_V20 corresponds to the measurement V20 (in this case plant species richness) computed for the transect T1 of the plot A10 on April-1 of 2023 (20230411).

Downloading and Extracting Data

First, we download and extract the dataset from the GBIF server. For this we used the url included in the GBIF’s dataset page, specifically we download the source archive (in Darwin Core Archive format). The url of this dataset is https://ipt.gbif.es/archive.do?r=amoladeras. After the donwload the file is unnzipped and stored in a temporary directory.

library(tidyverse)
library(datamodelr)
library(DiagrammeR)
library(DT)
library(sf)
gbif_url <- 'https://ipt.gbif.es/archive.do?r=amoladeras'

# Create a temporary directory for storing files
temp <- tempdir()
f <- paste0(temp, "/amoladeras.zip")
extract_dir <- paste0(temp, "/amoladeras")

# Download the dataset
download.file(gbif_url, destfile = f, method = "auto")

# Unzip the downloaded file
unzip(f, exdir = extract_dir)

# Display the list of extracted files
list.files(extract_dir)
[1] "eml.xml"                       "event.txt"
[3] "extendedmeasurementorfact.txt" "meta.xml"
[5] "occurrence.txt"
# Read the occurrence, event, and extended measurementOrFact files
occ <- read_delim(file = paste0(extract_dir, "/occurrence.txt"))
event <- read_delim(file = paste0(extract_dir, "/event.txt"))
emof <- read_delim(file = paste0(extract_dir, "/extendedmeasurementorfact.txt"))

We have 5 files:

  • Event file (event.txt, thereafter event)
  • Occurrence file (occurrence.txt, thereafter occ)
  • extended Measurement Or Facts file (extendedmeasurementorfact.txt, thereafter emof)
  • A file with the name of the darwin core terms included (meta.xml)
  • A file with the dataset metadata using the Ecological Metadata Language(Jones et al., 2019) (eml.xml)

The structure of the three data tables (files) used is shown in the Figure 5.

Figure 5: Tables of the Darwin Core Archive and their relationships.

Getting Data for Plots

Next, we extract and process data related to plots from the dataset

# Filter events to obtain only the top-level plots
raw_plots <- event |>
  filter(is.na(parentEventID)) |>
  mutate(id_plot = str_remove(eventID, "CSIC-EEZ:SERPAM:AMOLADERAS_")) |>
  dplyr::select(id_plot, eventID, fieldNumber, treatment_desc = fieldNotes, footprintWKT) |>
  separate(fieldNumber, into = c("block", "treatment"), sep = " \\| ")

# Convert to spatial data if needed
geo_plots <- raw_plots |>
  st_as_sf(wkt = "footprintWKT", crs = 25830)

# Create a dataframe without spatial information
plots <- raw_plots |> dplyr::select(-footprintWKT)

Getting Data for Quadrats

We proceed to extract and process data related to quadrats.

# Filter events to obtain only quadrat-related data
raw_quadrats <- event |>
  filter(samplingProtocol == "Quadrat count") |>
  filter(parentEventID %in% plots$eventID) |>
  mutate(id_quadrat = str_sub(eventID, -2)) |>
  mutate(id_plot = str_remove(parentEventID, "CSIC-EEZ:SERPAM:AMOLADERAS_")) |>
  dplyr::select(id_quadrat, id_plot, eventID, fieldNumber, treatment_desc = fieldNotes, footprintWKT) |>
  separate(fieldNumber, into = c("block", "treatment"), sep = " \\| ")

# Convert to spatial data if needed
geo_quadrats <- raw_quadrats |>
  st_as_sf(wkt = "footprintWKT", crs = 25830)

# Create a dataframe without spatial information
quadrats <- raw_quadrats |> dplyr::select(-footprintWKT)

Getting Data for Transects

We now extract and process data related to transects.

# Filter events to obtain only transect-related data
raw_transects <- event |>
  filter(samplingProtocol == "Point Quadrat Transect") |>
  filter(parentEventID %in% plots$eventID) |>
  mutate(id_transect = str_sub(eventID, -2)) |>
  mutate(id_plot = str_remove(parentEventID, "CSIC-EEZ:SERPAM:AMOLADERAS_")) |>
  dplyr::select(id_transect, id_plot, eventID, fieldNumber, treatment_desc = fieldNotes, footprintWKT) |>
  separate(fieldNumber, into = c("block", "treatment"), sep = " \\| ")

# Convert to spatial data if needed
geo_transects <- raw_transects |>
  st_as_sf(wkt = "footprintWKT", crs = 25830)

# Create a dataframe without spatial information
transects <- raw_transects |> dplyr::select(-footprintWKT)

Data Processing for Quadrat Count and Measurements

With the data extracted, we proceed to process the events and measurements related to quadrat counts.

# Process events for quadrat counts
quadrats_event <- event |>
  filter(samplingProtocol == "Quadrat count") |>
  filter(parentEventID %in% quadrats$eventID) |>
  mutate(date = lubridate::ymd(eventDate)) |>
  dplyr::select(id, parentEventID, date)

# Process measurements for quadrat counts
quadrats_measurements <-
  emof |>
  filter(id %in% quadrats_event$id) |>
  dplyr::select(id, abundance = measurementValue)

# Occurrence data for quadrat counts
quadrats_occ <-
  occ |>
  filter(id %in% quadrats_event$id) |>
  dplyr::select(id, species = scientificName)

# Combine event, measurement, and occurrence data for quadrat counts
df_abundances <-
  quadrats_event |>
  inner_join(quadrats_measurements, by = "id") |>
  inner_join(quadrats_occ, by = "id") |>
  inner_join(quadrats, by = c("parentEventID" = "eventID")) |>
  dplyr::select(
    id_plot, id_quadrat, block, treatment, treatment_desc, date, abundance, species
  )

The results could be consulted here:

Data Processing for Transect Measurements

Similarly, we process the events and measurements related to transects.

# Process events for transects
transects_event <- event |>
  filter(samplingProtocol == "Point Quadrat Transect") |>
  filter(parentEventID %in% transects$eventID) |>
  mutate(date = lubridate::ymd(eventDate)) |>
  dplyr::select(id, parentEventID, date)

# Process measurements for transects
transects_measurements <-
  emof |>
  filter(id %in% transects_event$id) |>
  filter(measurementType != "specific vegetation cover") |>
  dplyr::select(id, measurementType, measurementValue) |>
  pivot_wider(names_from = measurementType, values_from = measurementValue)

# Combine event, measurement, and occurrence data for transects
df_transects <-
  transects_event |>
  inner_join(transects_measurements, by = "id") |>
  inner_join(transects, by = c("parentEventID" = "eventID")) |>
  dplyr::select(
    id_plot, id_transect, block:treatment_desc,
    date,
    `bare soil cover`:`diversity index`
  )

The results could be consulted here:

Conclusion

At this point, we have successfully extracted, processed, and organized the data from the GBIF dataset. Further analysis and visualization can be performed using the df_abundances and df_transects dataframes.

Software used

We used R version 4.2.1 (R Core Team, 2022) and the following R packages: datamodelr v. 0.2.2.9002 (Bergant, 2017), DiagrammeR v. 1.0.10 (Iannone, 2023), DT v. 0.29 (Xie et al., 2023), knitr v. 1.44 (Xie, 2014, 2015, 2023), rmarkdown v. 2.25 (Allaire et al., 2023; Xie et al., 2018, 2020), sf v. 1.0.14 (Pebesma, 2018; Pebesma & Bivand, 2023), tidyverse v. 2.0.0 (Wickham et al., 2019).

References

Allaire, J., Xie, Y., Dervieux, C., McPherson, J., Luraschi, J., Ushey, K., Atkins, A., Wickham, H., Cheng, J., Chang, W., & Iannone, R. (2023). rmarkdown: Dynamic documents for r. https://github.com/rstudio/rmarkdown
Bergant, D. (2017). datamodelr: Define and plot data model diagrams. https://github.com/bergant/datamodelr
Daget, P., & Poissonet, J. (1971). An ecological analysis method of prairies: Criteria’s of application. Annales Agronomiques, 5–41.
GBIF. (2018). Best practices in publishing sampling-event data, version 2.2. GBIF Secretariat. Copenhagen. https://ipt.gbif.org/manual/en/ipt/2.5/best-practices-sampling-event-data
Iannone, R. (2023). DiagrammeR: Graph/network visualization. https://CRAN.R-project.org/package=DiagrammeR
Jones, M., O’Brien, M., Mecum, B., Boettiger, C., Schildhauer, M., Maier, M., Whiteaker, T., Earl, S., & Chong, S. (2019). Ecological metadata language version 2.2.0. https://doi.org/10.5063/f11834t2
Levy, E., & Madden, E. (1933). The point method for pasture analysis. New Zea­land Journal of Agriculture, 267–279.
Pebesma, E. (2018). Simple Features for R: Standardized Support for Spatial Vector Data. The R Journal, 10(1), 439–446. https://doi.org/10.32614/RJ-2018-009
Pebesma, E., & Bivand, R. (2023). Spatial Data Science: With applications in R. Chapman and Hall/CRC. https://doi.org/10.1201/9780429459016
Pérez-Luque, A. J., Ramos-Font, M. E., Tognetti-Barbieri, M. J., Román, C., Tribaldos-Anda, C., & Robles Cruz, A. B. (2023). Monitoring data on the effect of domestic livestock and rabbits on Androcymbium europaeum pastures. Version 2.1. Accessed via GBIF.org on 2023-08-30. Estación Experimental del Zaidín (CSIC). https://doi.org/10.15470/JPJHUU
R Core Team. (2022). R: A language and environment for statistical computing. R Foundation for Statistical Computing. https://www.R-project.org/
Wickham, H., Averick, M., Bryan, J., Chang, W., McGowan, L. D., François, R., Grolemund, G., Hayes, A., Henry, L., Hester, J., Kuhn, M., Pedersen, T. L., Miller, E., Bache, S. M., Müller, K., Ooms, J., Robinson, D., Seidel, D. P., Spinu, V., … Yutani, H. (2019). Welcome to the tidyverse. Journal of Open Source Software, 4(43), 1686. https://doi.org/10.21105/joss.01686
Xie, Y. (2014). knitr: A comprehensive tool for reproducible research in R. In V. Stodden, F. Leisch, & R. D. Peng (Eds.), Implementing reproducible computational research. Chapman; Hall/CRC.
Xie, Y. (2015). Dynamic documents with R and knitr (2nd ed.). Chapman; Hall/CRC. https://yihui.org/knitr/
Xie, Y. (2023). knitr: A general-purpose package for dynamic report generation in r. https://yihui.org/knitr/
Xie, Y., Allaire, J. J., & Grolemund, G. (2018). R markdown: The definitive guide. Chapman; Hall/CRC. https://bookdown.org/yihui/rmarkdown
Xie, Y., Cheng, J., & Tan, X. (2023). DT: A wrapper of the JavaScript library “DataTables”. https://CRAN.R-project.org/package=DT
Xie, Y., Dervieux, C., & Riederer, E. (2020). R markdown cookbook. Chapman; Hall/CRC. https://bookdown.org/yihui/rmarkdown-cookbook
